Part #: 10K_OAT
The 10K_OAT outdoor air temperature sensor is used to measure the outside air temperature in order to implement control strategies that rely on actual outside conditions.

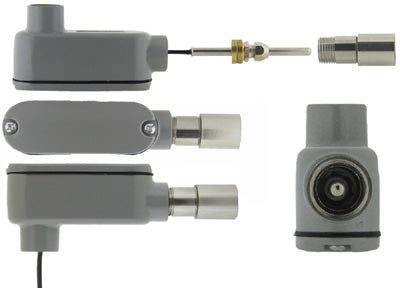

The sensor probe is made of Stainless Steel, and the housing is made of PVC and is UL approved for outdoor conditions. The sensor housing has a female 1/2" NPT threaded fitting for mounting on a 1/2" conduit or PVC.
The sensor element used is a 10K Type-II Thermistor and can be used with many popular brands of DDC manufacturers.
Cable temperature range: -40C to 80C
Thermistor Accuracy: +/- 0.2C
Sensor Operating Range -40C to 85C
Probe Material: Stainless Steel
Sensor Type: 10K Type-II Thermistor
Click here for the Thermistor R/T Chart
